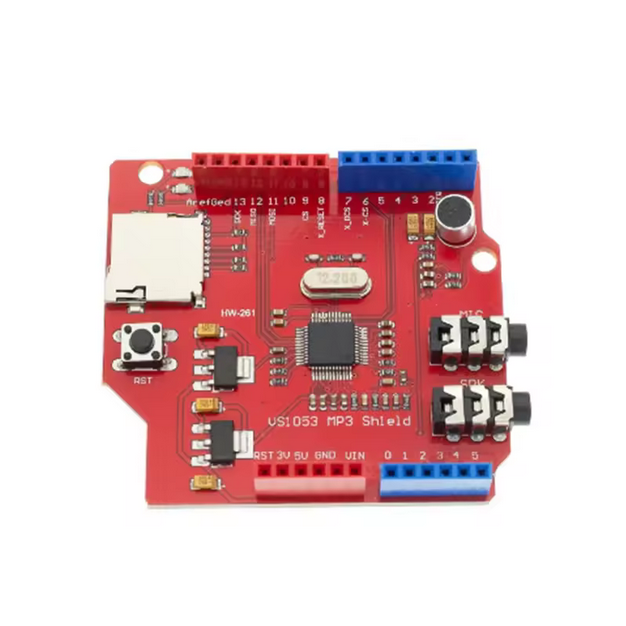

VS1053 MP3 Codec Module

The VS1053 MP3 Codec Module is a versatile multi-format audio decoder and encoder module built around the VLSI VS1053
chip. Supporting MP3, OGG, AAC, WMA, FLAC, WAV, and MIDI formats, the VS1053 module is an excellent choice for projects requiring
high-quality audio playback from SD cards or microcontroller-driven sources.
With an SPI interface for straightforward integration with Arduino and other platforms, the VS1053 is widely used in internet radio
receivers, portable media players, and advanced audio playback systems.

Key Applications🔹
Arduino and ESP32 internet radio receivers
SD card MP3 and audio playback projects
Portable media player builds
MIDI synthesiser and music projects
Multi-format audio decoding in embedded systems

Why Choose This Module?🔹
VS1053 multi-format audio codec IC
Supports MP3, OGG, AAC, WMA, FLAC, WAV, MIDI
SPI interface for microcontroller integration
Onboard headphone amplifier output
SD card slot for file-based playback
Encoding capability for audio recording

Technical Specifications🔹
Codec IC: VS1053
Supported Formats: MP3, OGG, AAC, WMA, FLAC, WAV, MIDI
Interface: SPI
Supply Voltage: 3.3 V DC
Output: Stereo headphone jack
SD Card: MicroSD slot (FAT16/FAT32)

What's Included🔹
1 × VS1053 MP3 Codec Module

Pro Tip🔹
Use a 3.3 V logic-level microcontroller or add level shifters when connecting to 5 V Arduino boards to prevent damage to the VS1053💡
SPI interface.

Note:⚠️
The VS1053 operates at 3.3 V. Applying 5 V directly to the SPI or power pins without a regulator may damage the module.
