RFID Kit RC522 RFID Reader Module with S50 White Card and Key Ring

 RFID Kit RC522 RFID Reader Module with S50 White Card and Key Ring DESCRIPTION :

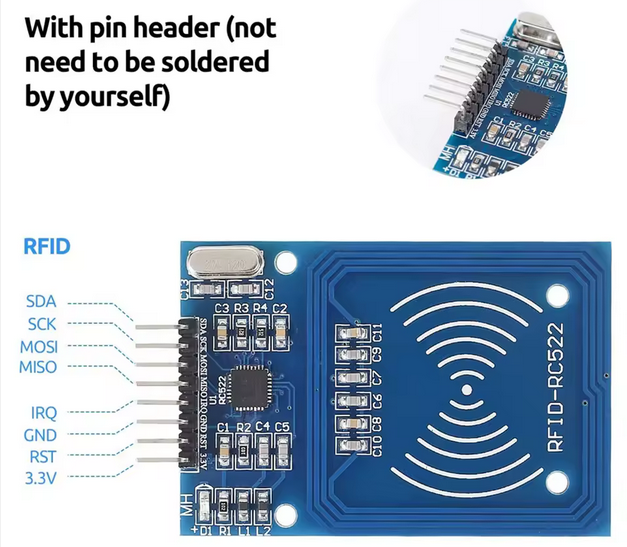

1.  The MF522-AN module design the circuit of card read by using the original Philips MFRC522 chip.

2. Easy to use, low cost, and applicable to equipment development and card reader development etc.

3. Applicable for the user who need to design or manufacture the RF card terminal.

4.The module can be directly loaded into the various reader molds.

5. The module use a voltage of 3.3V, it can connected communication with user's any CPU mainboard through several lines of SPI interface, it can ensure stable and reliable work, and reader distance.

RC522 chip
1. MFRC522 is a highly integrated read and write chip which is applicable to 13.56MHz contactless communications.
2. It is a non-contact read and writer card chip, low voltage, low cost and small size, is a better choice for smart meters and
portable handheld devices development.
3. MF RC522 completely integrated in all types of 13.56MHz passive contactless communication methods and protocols.
4. Support 14443A compatible transponder signals. The digital part handles ISO14443A framing and error detection. In addition,
support fast CRYPTO1 encryption algorithms, terminology validation MIFARE products.
5. MFRC522 support MIFARE series of high-speed non-contact communication, two-way data transmission rate up to 424kbit/s.
6. As a highly integrated 13.56MHz card reader new family of chips, there are many similarities between MF RC522, MF RC500 and MF
RC530, but also have many differences. Communication between it and the host SPI mode helps to reduce the connection, reduce PCB
board size and cost.

Electrical parameters:
Operating current :13-26mA/DC 3.3V
Idle current :10-13mA/DC 3.3V
Sleep current: <80uA
Peak current: <30mA
Operating Frequency: 13.56MHz
Supported card types: mifare1 S50, mifare1 S70 MIFARE Ultralight, mifare Pro, MIFARE DESFire
Product physical characteristics: size: 40mm×60mm
Environmental Operating temperature: -20-80 degrees Celsius
Environmental Storage Temperature: -40-85 degrees Celsius
Relative humidity: relative humidity 5% -95%

Key Applications🔹
RFID door access control systems
Attendance and time-tracking projects
Contactless identification and authentication
Arduino RFID card reader projects
Smart locker and secure storage systems

Why Choose This Module?🔹
MFRC522 RFID IC
13.56 MHz ISO/IEC 14443 A standard
SPI interface for microcontroller integration
Read and write capability
Low power consumption
Includes RFID card and key fob

Technical Specifications🔹
IC: MFRC522
Frequency: 13.56 MHz
Interface: SPI (up to 10 Mbps)
Supply Voltage: 3.3 V DC
Read Range: Up to 5 cm
Supported Cards: Mifare 1K, Mifare 4K, Mifare Ultralight

What's Included🔹
1 × RC522 RFID Module
1 × RFID Key Card
1 × RFID Key Fob

Pro Tip🔹
Use the MFRC522 Arduino library for quick setup — it includes example sketches for reading UID, writing data, and access control💡
logic.

Note:⚠️
The RC522 operates at 3.3 V. When connecting to a 5 V Arduino, use a logic level converter or connect only through 3.3 V-tolerant SPI
pins to avoid damaging the module
