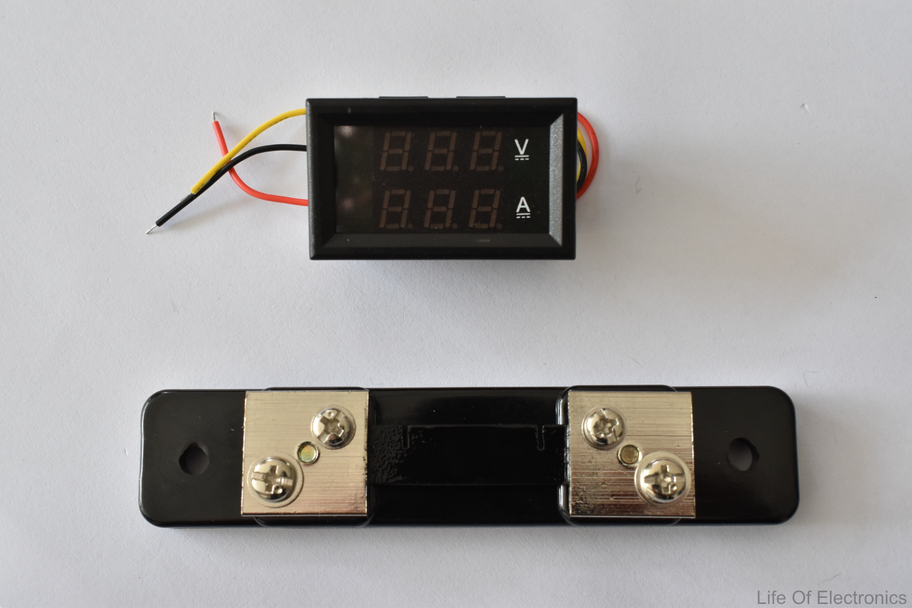

Dual Volt Amp Meter with 50A with Shunt

A dual-display panel meter for high-current DC systems — measuring voltage and current up to 50 A simultaneously with a precision external shunt. Ideal for solar charge systems, electric vehicle power monitoring, and industrial battery systems where high-current accuracy is essential.

🔹 Key Applications

• Solar charge controller 50 A current monitoring
• Electric vehicle and e-bike charge/discharge monitoring
• High-current DC motor power measurement
• Battery bank charge current display
• Industrial power distribution panel monitoring

🔹 Why Choose This Module?

• 50 A high-current measurement with precision shunt
• External shunt mounting — keeps heat away from display
• Wide 0–100 V voltage range — covers all standard DC bus voltages
• Dual simultaneous readout — one-glance power monitoring
• Panel-mount ready with standard DIN cutout

🔹 Technical Specifications

• Voltage Range: 0 – 100 V DC
• Current Range: 0 – 50 A
• Shunt: External precision (included)
• Display: Dual LED
• Accuracy: ±1%

🔹 What's Included

1 × Dual Volt Amp Meter with External 50A Shunt

🔹 Pro Tip

💡 Mount the 50 A shunt using M4 bolts directly in the main current path and run lighter sense wires to the meter. Keep sense wires twisted pairs and under 1 m long. At 50 A, connection resistance matters — use 10 mm² cable to the shunt terminals to minimise voltage drop.

⚠️ Note: Always ensure proper heat dissipation and correct voltage configuration before powering connected devices.
